    Explosion proof service,safety Industrial monitor for offore marine,military using camera


    Our product all have obtain governments approval Explosion proof certificates,quality is 100% guaranteed in flammable environments,such as petro chemical,oil tank and mining,gas station,medicine,army,oil plant etc.Our product could realized safety monitoring this explosive environments,also our corporation offer whole line technical support and installation assistance,we offer 1 month return and 1 year free requirements because of our quality problems.


    Explosion proof performance with GB3836.1-2000 " electrical apparatus for explosive gas atmospheres -- part first: General requirements ", " GB3836.2-2000 explosive gas environment with explosion-proof electrical equipment - Part second: Flameproof Enclosure" d " " provisions made of explosion-proof structure.

    Product Name: stainless steel explosion-proof connection pipe


    Specification

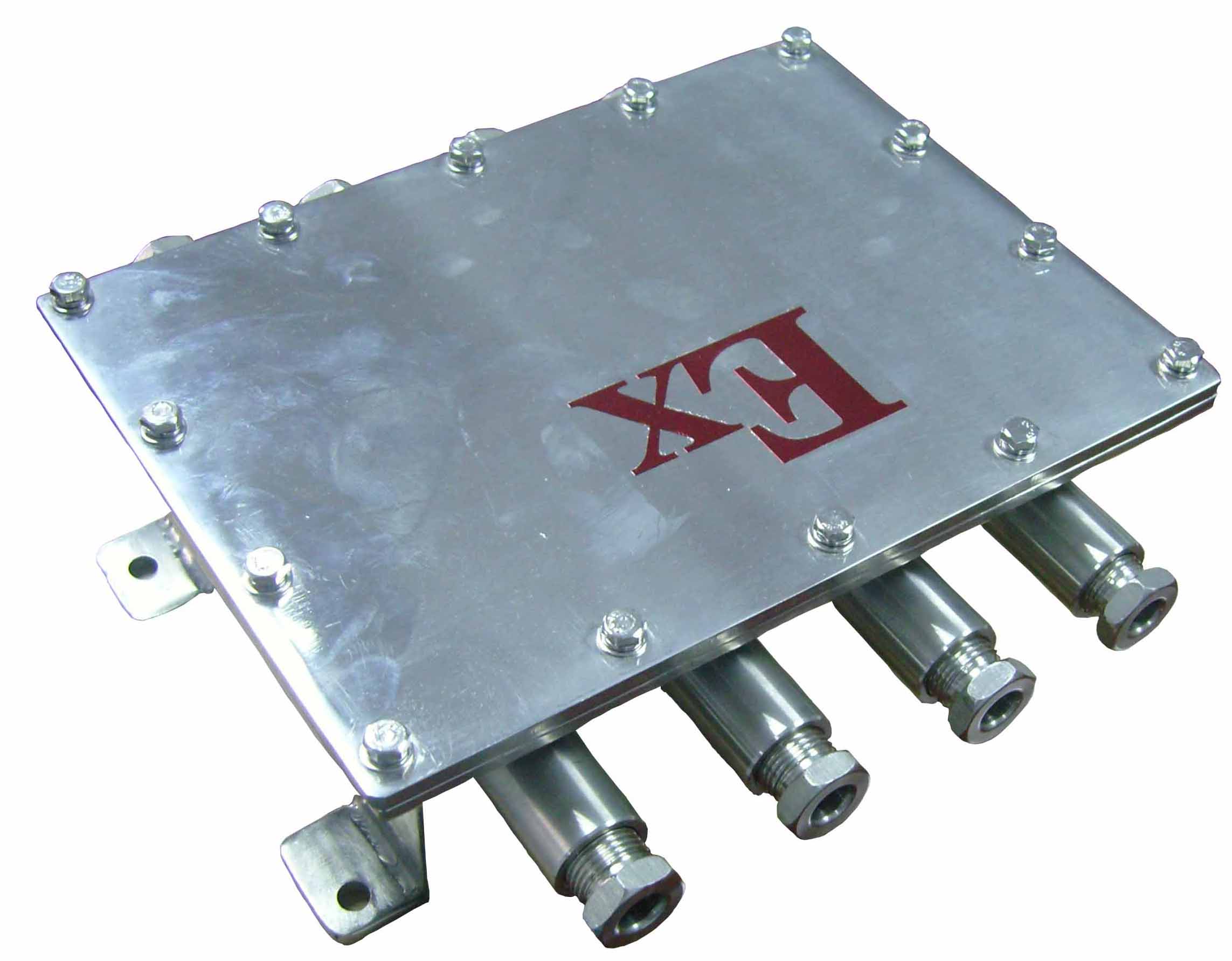

    Product Name: explosion-proof decoder

    Internal number: RFJM280

    Explosion proof performance with GB3836.1-2000 " electrical apparatus for explosive gas atmospheres -- part first: General requirements ", " GB3836.2-2000 explosive gas environment with explosion-proof electrical equipment - Part second: Flameproof Enclosure" d " " provisions made of explosion-proof structure.

    Product type: RFJM-Ex

    Explosion proof mark: ExdⅡ CT6/Exd,Ⅱ BT6

    Product material: high quality carbon steel ( stainless steel optional, used in the corrosive environment )

    Features: eight the outlet hole, support for multiple switch and common agreement

    High hardness high quality carbon steel production, spraying the surface processing

    Optional automatic and preset function, for a number of key points of monitoring

    Application environment: withⅡ A,Ⅱ B,Ⅱ C type combustible gas ignition temperature group, group T1-T6 District 1, District 2, combustible gas or vapor and air to form an explosive mixture of place, also applies to the ignition T1-T6 temperature group group 20, zone 21, zone 22 zone, containing combustible dust mixture. E.g.: petroleum, chemical, mining, military, medicine, oil, ships, drilling platform, gas station, fireworks production, food processing and storage.


    Packing Details
    Explosion proof mark
    ExdⅡCT6/ExdⅡBT6
    Protection grade
    IP66
    Support protocol
    PELCO-D,PELCO-PA variety of common agreement
    Input voltage
    AC220V
    Communication interface
    RS485
    Ambient temperature
    -25℃ ~ +70℃
    External dimensions
    280mm ×250mm ×90mm(Length * width * height)
    Internal dimensions
    220mm ×150mm ×75mm(Length * width * height)
    Outlet size
    G 1/2 " * 2
    Weight
    ≤8kg

    Packing Details
    Interface specification
    ExdⅡ
    Interface specification
    Ends of British 1/2 external thread
    Ambient temperature
    -25℃ ~ +70℃
    Length
    1200mm
    Inside diameter
    ¢15mm
    Instructions for use
    In corrosive environment for wiring steel and explosion-proof equipment soft connection between

    Services:

    1.The goods will be shipped within 3 working days after we get your payment(except holiday)
    2.The goods will be sent by the most reasonable way for delivery,DHL,UPS,Fedex,EMS,TNT. Shipping discount will be available based on your order quantity
    3. We rely on our reputation and customer satisfaction to succeed, Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service ,thanks
    4. we offer very good after-sales services and any technical assistance you need.
